Executive Summary

Standing at a bus stop, almost no one asks: why does this line pass here? Begin to answer it and the answer is not shallow. A single route is the accumulated product of planner analyses, citizen petitions, operator budgets, and decades of ridership patterns. How should K routes be placed on a city's road network? Academia calls it the Transit Route Network Design Problem — TRNDP for short.

TRNDP has been a classical Operations Research problem since the 1970s. Mixed-integer programming, genetic algorithms, simulated annealing — each was tried in turn, and each exploded at city scale. The reason is straightforward. Even with a hundred road-network nodes, the number of possible route combinations becomes astronomical, and the value of any one route depends on its interaction with all the others. The textbook definition of NP-hard.

Go and chess carried the same burden. The value of one move cannot be known until the game ends. We know how AlphaGo solved it — combine search (MCTS) with learning (a neural policy-value function). AlphaTransit attempts exactly the same pattern on a road network.

What AlphaTransit does, in one sentence: on the road-network graph, it extends routes one edge at a time until K routes are complete. Each step is a decision; the accumulation of decisions becomes the final transit network. By analogy, it is a board game where K route decisions are played out one move at a time.

2.1Policy network and value network

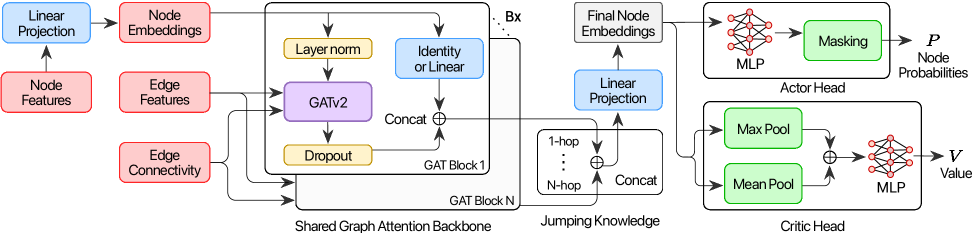

The agent's brain is two neural networks. The policy network takes the current state (routes drawn so far + road network + demand) and outputs a probability distribution over "which edge should the route extend to next." The value network takes the same state and estimates "from here, how good will the final design likely be." Both networks share inputs — road graph, OD demand, existing route geometry — but their outputs differ: one is the next move, the other is the future score.

2.2MCTS — decision-time lookahead

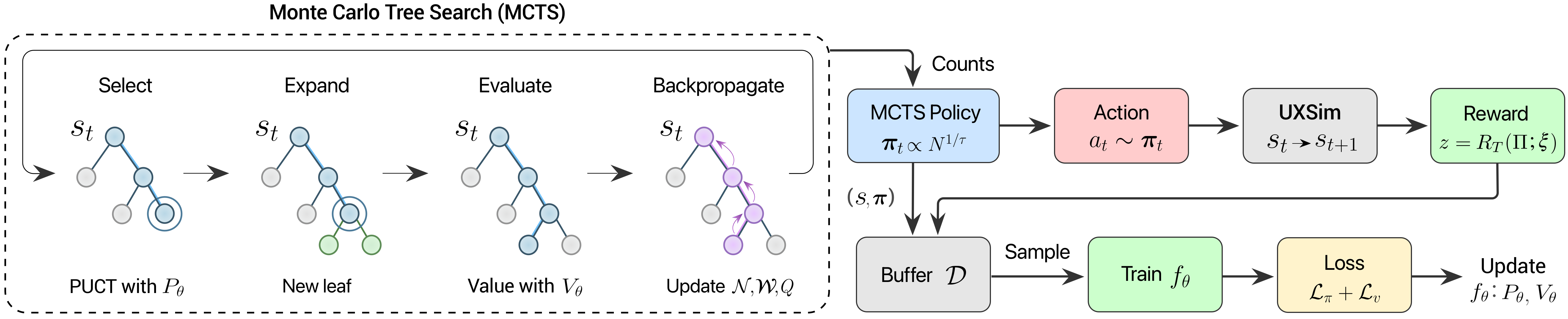

If the policy and value networks provide "intuition," Monte Carlo Tree Search raises that intuition to "deliberation." At each decision step, MCTS expands a tree of candidate next moves guided by the policy network and evaluates leaf nodes' future quality with the value network. Promising branches are explored more deeply; hopeless ones are pruned quickly. After enough simulations, the most reliable action is selected.

This is the elegant pattern validated in AlphaGo, AlphaZero, and MuZero: learned guidance + search. Learning alone wobbles over long horizons; search alone is helpless in front of a vast action space. Coupled together, one illuminates the path while the other previews where it ends.

2.3How the delayed feedback is resolved

The delayed-feedback difficulty of §1 — that a route's value reveals itself only at the end — is addressed in two ways. First, the value network learns to estimate future quality from intermediate states. As training proceeds, it picks up patterns of the form "this much partial structure tends to converge to service rate X." Second, MCTS rollouts directly unfold trajectories rather than rely solely on value estimates. When the two signals combine, the consequences of an edge-level decision sixty steps from completion become legible already at step thirty.

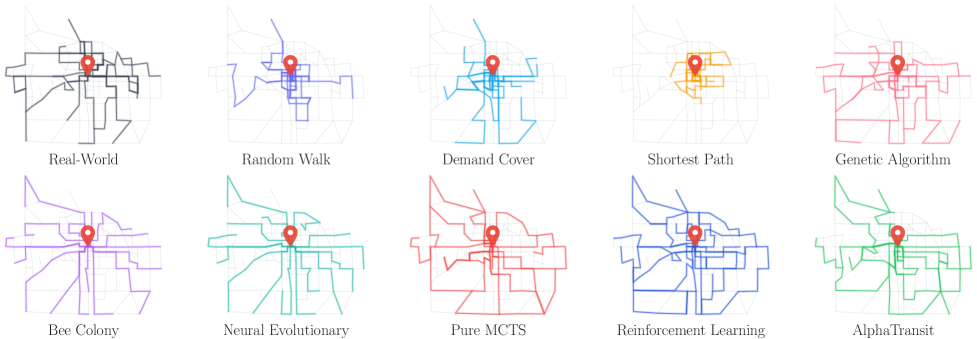

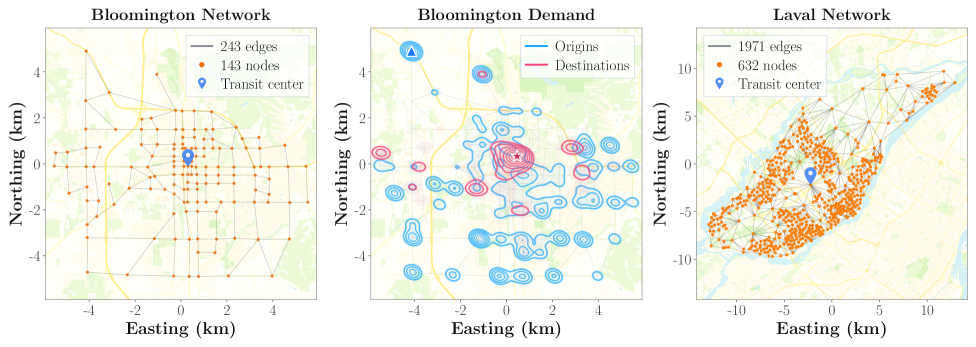

A long-standing weakness of TRNDP research is the poverty of its benchmarks. Mumford-60, Mumford-100, Mumford-150, Mandl-15 — synthetic cities standardized in academia. Clean, but fake. AlphaTransit chose differently. It runs on Bloomington, Indiana's real road topology with census-derived commuting demand, and compares directly against the sixteen real bus lines operated by Bloomington Transit.

3.1Two scenarios, four comparisons

Experiments run under two demand scenarios. Mixed demand models a realistic city where private vehicles and transit coexist — some trips never reach a bus. Full transit demand models the extreme case where every commute is absorbed by transit — the picture of a city in mode-shift. Under each scenario, AlphaTransit, RL alone, MCTS alone, and the real operating network are compared.

The table tells two stories. First, learned guidance and search cover each other's blind spots. RL alone loses resolution over long horizons; MCTS alone has to sift through too many branches without policy guidance. Second, the size of the synergy depends on the demand scenario. The fact that AlphaTransit overtakes RL/MCTS-alone by roughly 11pp under full-transit demand is a signal: the value of AI-designed transit grows sharply as a city shifts toward transit-centric mode.

The name "AlphaTransit" is no accident. The DeepMind lineage — AlphaGo → AlphaZero → MuZero → AlphaFold — set a paradigm: learned policy-value function + search. The name tells us that the paradigm has now reached urban-infrastructure design. The essence of the algorithm that beat Lee Sedol in 2016 was sequential decision-making under terminal reward — exactly the structure of route design, where edges are drawn one by one and service rate arrives only at the end.

4.1Following the lineage

A chronological sketch of the DeepMind lineage. AlphaGo (2016) — supervised learning + self-play RL + MCTS beats a human champion. AlphaZero (2017) — drops the supervised stage, generalizes to chess and shogi. MuZero (2019) — learns the environment model itself, plays games whose rules it doesn't know. AlphaFold (2020) — a variant of the paradigm solves protein folding. AlphaTransit (2026) — designs public-transit routes on a city's road network. The trajectory points steadily toward "real-world problems with less explicit rules and sparser rewards."

4.2Within the broader RL-for-cities current

RL applied to urban transport did not begin with AlphaTransit. Traffic-signal control has been the standard testbed for multi-agent RL since around 2018 (numerous studies built on SUMO and MATSim). Vehicle routing has seen MCTS-RL hybrids such as AlphaRouter. Route heuristic learning was shown by Lemoy et al. (2024), where GNNs learn the heuristics of evolutionary algorithms.

AlphaTransit's novelty lies in drawing the routes themselves, from scratch. It does not assist heuristics — it replaces them. And it does so on a real city rather than a synthetic benchmark, importing the elegant pattern of the AlphaGo lineage straight into urban-infrastructure design.

Bloomington is small — about 80,000 residents, sixteen routes. Would an algorithm that works there work in Seoul? To answer honestly, look first at the distance between the two cities.

5.1The 2004 Seoul bus reform as precedent

Seoul has done a city-scale bus redesign before. On July 1, 2004, after eighteen months of planning, the city overhauled its entire bus system in a single day — a new four-tier classification (trunk/branch/express/circular), unified transfer fares, central bus-only lanes, and a route map redrawn at the city level. One year later, daily ridership was up 14% and satisfaction had risen from 14.2% to 36.9%. It is the historical proof that city-scale transit redesign by human planners is possible and effective.

If AlphaTransit were aimed at Seoul, the variables it would meet are not simple. Scale — the node count is dozens of times Bloomington's; can RL sample efficiency hold? Multimodality — transfer optimization with twelve subway lines lies beyond this paper. Politics — closing a route ties to operators' jobs and adjacent commerce. Algorithms do not handle this. Equity — maximizing service rate can concentrate routes in dense areas. What about the elderly in the periphery?

Through Pebblous lenses, the landscape of city-design AI forks two ways. One is generating cities from text — represented by Studio Tim Fu's UrbanGPT 2.0. It turns a sentence like "a street with a park, and a café next to a school" into a 3D urban layout. The other is designing flow with reinforcement learning — today's AlphaTransit. It takes "the OD demand of this city looks like this" and turns it into a transit network. Two facets of the same larger movement: AI generates the form and the flow of cities.

6.1AlphaTransit read through the Spatial AI 5 criteria

From the lens of Pebblous's Spatial AI evaluation criteria, AlphaTransit's strengths and gaps are both visible.

Of the five criteria, two are strong, two are partial, and one is absent. AlphaTransit is exemplary on data coherence and scale fidelity — running on a real Bloomington rather than a synthetic city is, in itself, a contribution. But how citizens participate in the algorithm, how equity is preserved, lies beyond the paper. It is another reminder that urban-design AI is not just an algorithm problem — it is the sum of data + algorithm + social system.

6.2Why Pebblous sits where it does

Pebblous claims the chair labeled "data quality." When the OD demand, road graph, and census data that AlphaTransit learns from are coherent, the algorithm's outputs become trustworthy. Biased training data biases the routes — if peripheral populations are underrepresented in the OD, the algorithm draws fewer routes there. Data quality decides a city's equity. Pebblous's DataGreenhouse and DataClinic touch urban-design AI at exactly that point.

A one-sentence summary of what AlphaTransit solved: it demonstrated quantitatively that TRNDP, on real city data, can be solved by coupling MCTS with a neural policy-value network. The elegant pattern of the AlphaGo lineage has now touched social-system design.

The unfinished list is honestly long. Megacity scaling — will sample efficiency and search cost survive Seoul, Tokyo, NYC? Multimodal integration — not only buses but subways, bike sharing, and autonomous shuttles together. Dynamic demand — commute, late-night, festival, disaster across all time slices. Equity and accessibility — bringing the peripheral elderly into the reward function. Citizen feedback — letting the algorithm's outputs flow into deliberation, hearings, and re-training.

The first step, however, is not light. What AlphaTransit showed is not the proposition "algorithms can design cities better" but the more precise one: "coupling learned guidance with search makes a meaningful, measurable difference in city-scale transit design." The distance between those two statements is large — but our map of what algorithms can do inside a city is one square clearer than yesterday.

The bus line you ride every day will look slightly different now. It is not merely someone's decision but an accumulation of data, algorithms, politics, and history. And now a small agent — one that uses learning and search hand in hand — has just arrived at that intersection.

Pebblous Data Communication Team
May 28, 2026

Primary sources and key secondary materials cited in this article.

Primary Academic Sources

• 1.Poudel, B., Swaminathan, S., & Li, W. (2026). "AlphaTransit: Learning to Design City-scale Transit Routes." arXiv:2605.28730. arxiv.org
• 2.Poudel, B. (2026). AlphaTransit — Code Repository. github.com
• 3.Silver, D., et al. (2017). "Mastering the Game of Go without Human Knowledge" (AlphaZero). Nature, 550. nature.com
• 4.Lemoy, R. (2024). "Learning Heuristics for Transit Network Design and Improvement with Deep Reinforcement Learning." Transportmetrica B, 13(1). arxiv.org

Seoul Bus Reform

• 5.Seoul Solution / Seoul Metropolitan Government (2014). "Reforming Public Transportation in Seoul." seoulsolution.kr
• 6.UN-Habitat (2013). "Bus Reform in Seoul, Republic of Korea." Case Study Report. unhabitat.org
• 7.Streetsblog USA (2018). "What American Cities Can Learn From Seoul's 2004 Bus Redesign." usa.streetsblog.org

Pebblous Series

• 8.Pebblous (2026). "UrbanGPT 2.0 — Designing Cities with a Single Line of Text." blog.pebblous.ai
• 9.Pebblous (2026). "Should We Score Spatial AI? Five Criteria from PebbloSim's Perspective." blog.pebblous.ai
